Clean Production JEDEC IC Trays for Wafer Protection

Clean Production JEDEC IC Trays for Wafer Protection

Marka Adı: Hiner-pack
Model Numarası: HN25012
Moq: 500 adet
fiyat: $1.35~$2.38(Prices Are Determined According To Different Incoterms And Quantities)
Ödeme Şartları: T/T
Tedarik Yeteneği: 2000 adet/gün
Ayrıntılı Bilgiler
Menşe yeri:
Çin
Sertifika:
ROHS, ISO
Tepsi Ağırlığı:
Genellikle Kavite Başına 500 Grama Kadar Değişir
Renk:
Siyah
Kalite Güvencesi:
Teslimat garantisi, güvenilir kalite
Kavite Boyutu:
322,6×135,9×7,62 mm
Incoterms:
EXW, FOB, CIF, DDU, DDP
Kalıp Tipi:
Enjeksiyon
Yeniden kullanılabilir:
Evet
Tepsi Şekli:
Dikdörtgen
Temiz Sınıf:
Genel ve Ultrasonik Temizleme
IC Türü:
BGA,QFP,QFN,LGA,PGA
Paketleme seviyesi:
Taşıma Paketi
Düzlük:
0,74 mm'den az
Kapasite:
11X26=286 adet
Ambalaj bilgileri:
karton, palet
Yetenek temini:
2000 adet/gün
Ürün Tanımı

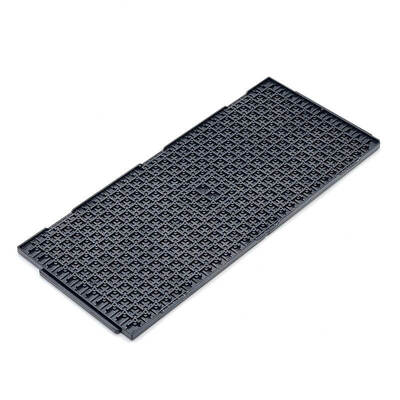

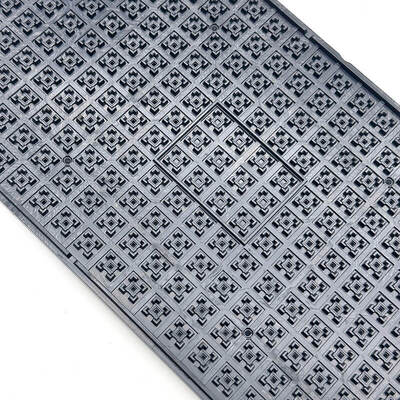

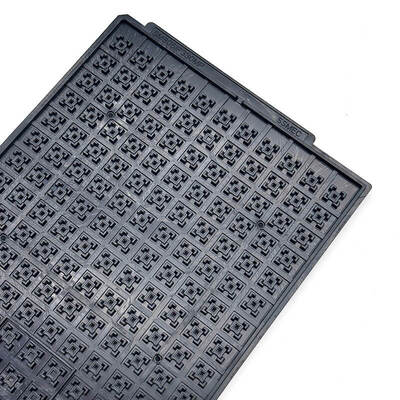

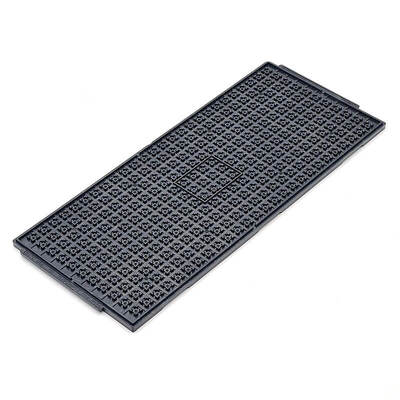

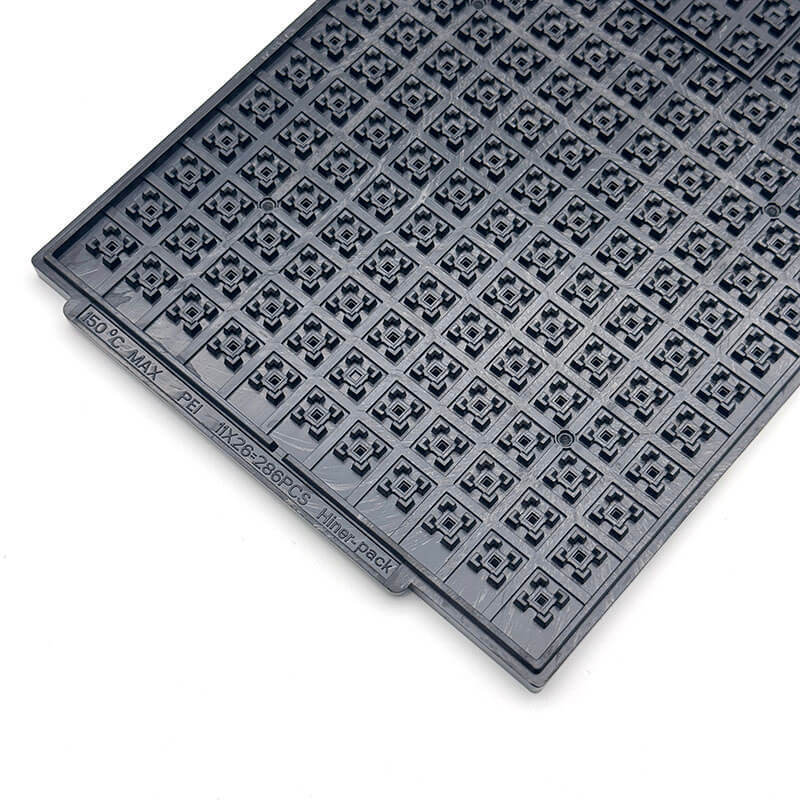

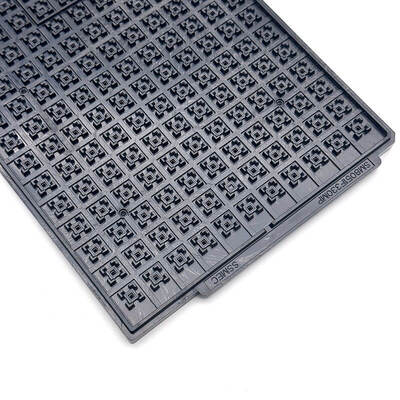

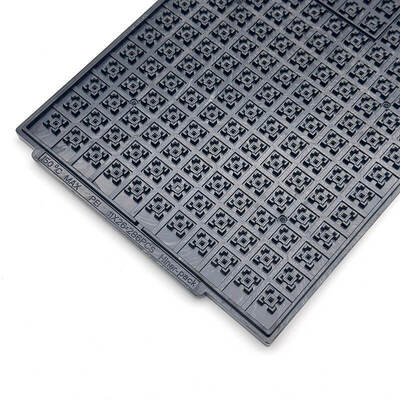

Clean Production JEDEC IC Trays for Wafer Protection
Shield delicate semiconductor wafers from dust and damage during production and handling. Maintain clean production environment effectively. Built with sturdy structure to meet JEDEC standards for long-term industrial use. Looking for reliable tray solutions for wafer protection?

Fit automated assembly lines and packaging plants perfectly. Perform steadily in wafer transfer and packaging procedures. Adapt to diverse semiconductor manufacturing processes smoothly.

Enable safe wafer storage and factory logistics. Support custom designs to meet specific production demands. Deliver tailored solutions for unique semiconductor manufacturing requirements.
Key Features/ Benefits
  • Strong durable structure
  • Effective dust prevention
  • Safeguard wafer packaging processes
  • Clean production support
  • Flexible customization
Specifications
Brand Hiner-pack
Model HN25012
Material MPPO
Package Type JEDEC
Color Black
Resistance 1.0×10⁴ - 1.0×10¹¹ Ω
Outline Line Size 322.6×135.9×7.62 mm
Cavity Size 4×4×0.75 mm
Matrix QTY 11X26=286 PCS
Warpage MAX 0.74mm
Service Accept OEM, ODM
Custom Pocket Options Available
Applications
Serve semiconductor front-end processing, wafer probing, final assembly, and device testing operations. Adapt to cleanroom Class 100/1000 environments, automated material handling systems, and high-temperature manufacturing processes.

Also utilized in inter-factory wafer transfer, third-party testing services, and finished device inventory management. Cater to integrated device manufacturers, foundries, and outsourced semiconductor assembly and test facilities.
Customized Services
Offer end-to-end customization for JEDEC IC trays. Collaborate with engineering teams to define cavity pitch, pocket depth, and material properties for specific wafer sizes and thicknesses. Develop anti-static or high-temperature resistant variants, and validate prototypes through in-house testing. Deliver fully tailored tray solutions that optimize production flow and minimize contamination risks for advanced semiconductor manufacturing.
About Us:
Hiner-pack® was founded in 2013. It is a high-tech enterprise that integrates Design, R&D, Manufacturing, Sales of IC packaging and testing, as well as semiconductive wafer fabrication process in automated handling, carrying, and transportation to provide customers with turnkey services.

Why Choose Us:

  • Rich experience in JEDEC / IC / waffle pack trays
  • In-house mold design capability
  • Fast prototype development
  • Strict QC process
  • Stable supply for global semiconductor customers
