Stackable RoHS Compliant JEDEC Matrix Tray with Customizable Compartment Layouts for Secure Electronic Component Handling

Name: Stackable RoHS Compliant JEDEC Matrix Tray with Customizable Compartment Layouts for Secure Electronic Component Handling
Brand: Shenzhen Hiner Technology Co., Ltd.
SKU: HN 24170
Price: 1.35 USD
Availability: InStock

Marka Adı:	Hiner-pack
Model Numarası:	HN 24170
Moq:	500pcs
fiyat:	$1.35~$2.38(Prices Are Determined According To Different Incoterms And Quantities）
Ödeme Şartları:	100% Prepayment
Tedarik Yeteneği:	2000PCS/Day

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Shenzhen ÇİN

Sertifika:

RoHS、ISO

Boyut:

322,6x135,9x7,62 mm

Renk:

Siyah, Mavi, Sarı, Beyaz, Yeşil vb.

Rohs Uyumluluğu:

Evet

Geri dönüştürülebilir:

Evet

Özelleştirilebilir:

Özel Bölme Düzenleri ve Renkleriyle Mevcuttur

İstiflenebilir:

Evet, Güvenli İstifleme İçin Tasarlandı

Kalıplama Yöntemi:

Enjeksiyon Kalıplama

Incoterms:

EXW, FOB, CIF, DDU, DDP

Ambalaj bilgileri:

70 ~ 100 adet/karton (Müşteri talebine göre)

Vurgula:

Modüller için JEDEC IC tepsisi, özelleştirilebilir PCB tepsi cepleri, dayanıklı JEDEC matris tepsisi

Packaging Details:

70~100pcs/carton(According To The Customer Demand）

Supply Ability:

2000PCS/Day

Vurgulamak:

Stackable JEDEC Matrix Tray

RoHS Compliant IC Component Tray

Customizable Compartment Layouts Electronic Component Tray

Ürün Tanımı

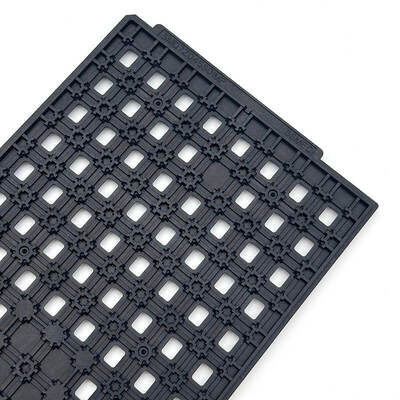

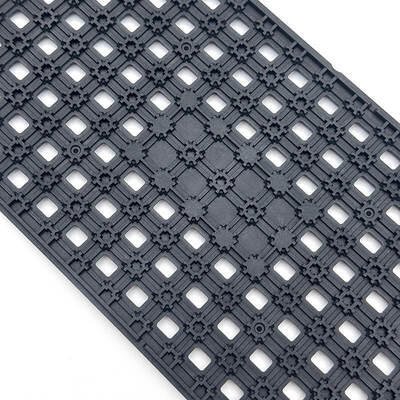

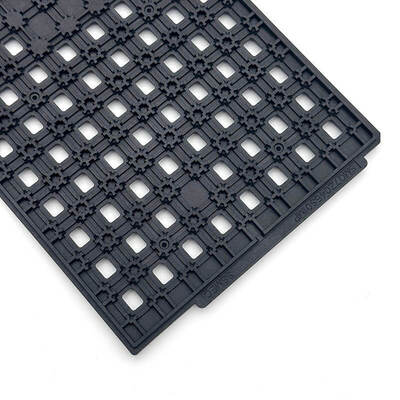

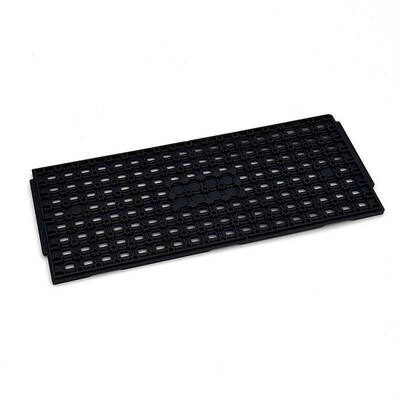

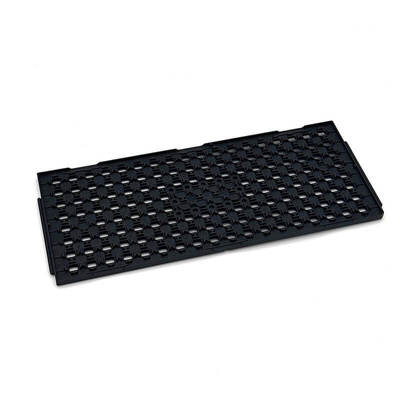

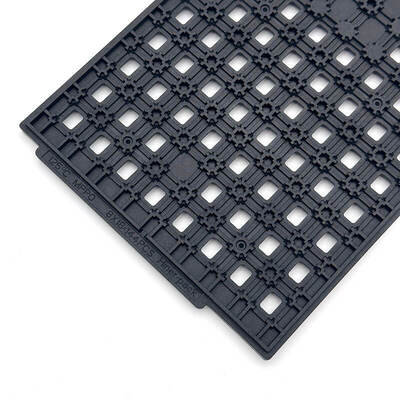

JEDEC Matrix Trays - HN 24170

The JEDEC Matrix Trays are essential components in electronics manufacturing and packaging, providing reliable, efficient, and environmentally responsible solutions for handling and transporting sensitive electronic components. Fully RoHS compliant, these trays meet stringent environmental standards and are free from hazardous substances, making them a safe choice for manufacturers prioritizing sustainability and safety.

Key Features

Product Name: JEDEC Matrix Trays
Recyclable: Environmentally friendly material
ESD Protection: Optional ESD-safe versions available
Temperature Range: Operates from 0°C to +150°C
Color Options: Black, Blue, Yellow, White, Green, etc.
Ideal for Building Cable Tray applications
Compatible with Acrylic Tray Display setups
Suitable for use with Apple Tray Making Machine

Technical Specifications

Brand	Hiner-pack
Model	HN 24170
Material	MPPO
Package Type	Module
Color	Black
Resistance	1.0x10e4-1.0x10e11Ω
Outline Line Size	322.6x135.9x7.62mm
Cavity Size	9.510.51.02mm
Matrix QTY	8*18=144PCS
Flatness	MAX 0.76mm
Service	Accept OEM, ODM
Certificate	RoHS, ISO

Applications

These premium-quality trays are designed specifically for semiconductor and electronic component storage and transportation. With temperature resistance up to 125°C, they provide reliable protection in demanding manufacturing and storage environments.

Packing and Shipping

Each tray is carefully packaged with anti-static materials and secured stacking to prevent damage from electrostatic discharge. Sturdy cardboard boxes with cushioning materials ensure protection during transportation, with clear labeling for smooth logistics. Reliable shipping partners guarantee timely delivery while maintaining product quality.
